In electric rail systems, the pantograph is the critical link between the locomotive and the overhead contact wire (OCW). SK Formulations is a premier pantograph coating manufacturer , providing INSULECT SK-03 - a specialized dielectric solution designed to prevent electrical leakage, destructive arcing, and flashovers.

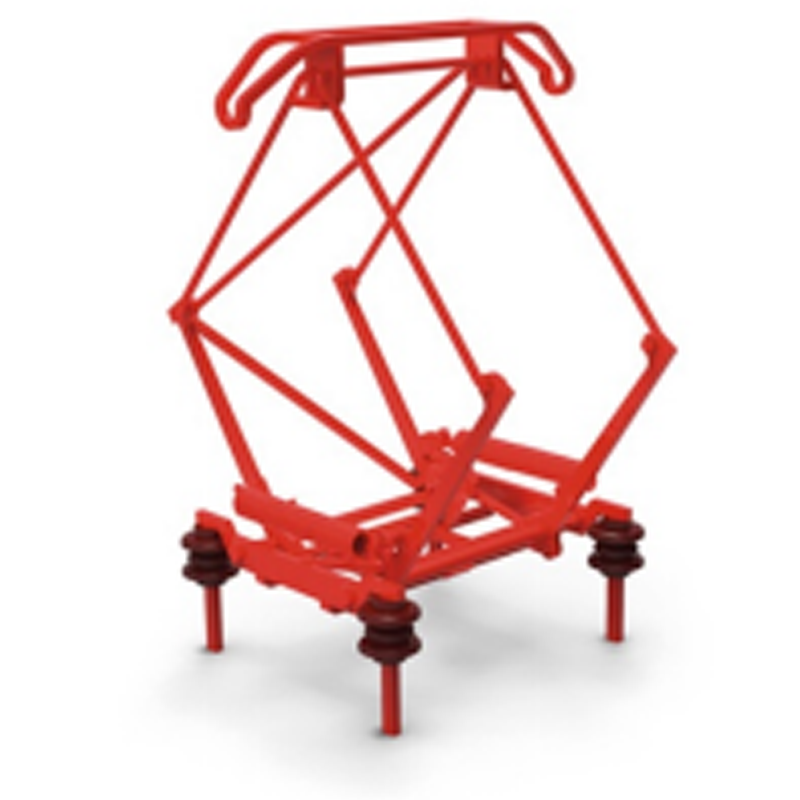

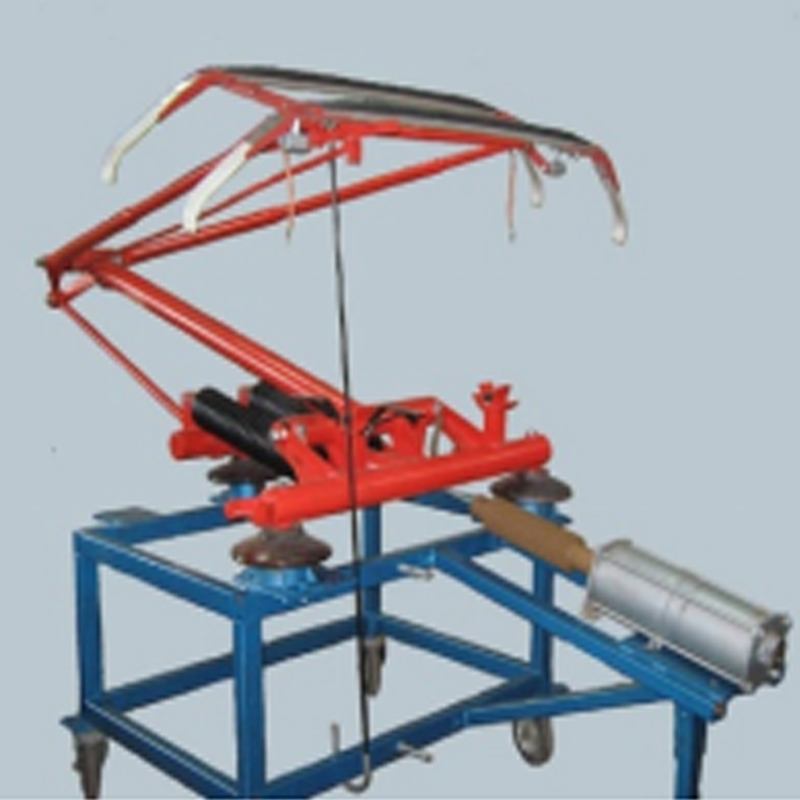

Our non-conductive rail coating forms a robust dielectric barrier on pantograph arms, frames, and joints. By ensuring superior tracking resistance, INSULECT SK-03 safeguards the operation of electric locomotives, EMUs, and metro trains against high-voltage failures in the most demanding maritime and inland environments.
Why INSULECT SK-03 is the Industry Standard for Rail Systems
Electric rail systems operate under constant mechanical stress and high-voltage exposure. INSULECT SK-03 is engineered to enhance the durability and longevity of pantograph assemblies while maintaining peak electrical safety.
- Single-Pack, Ready-to-Use : Simplifies the maintenance process for rail workshops—no complex mixing required.
- Rapid 30-Minute Curing : Fast room-temperature drying ensures that locomotives can return to service quickly, minimizing fleet downtime.
- Self-Priming Performance : Direct-to-metal adhesion on specialized alloys and steel frames without the need for a primer.
- Custom Color Match : Available in all desired shades for easy inspection and compliance with railway aesthetic standards.
- Field Rectification : Easy touch-up and repair capabilities for on-track maintenance.
- Elite Dielectric Strength : Certified protection at 122 kV/mm, providing a massive safety margin for high-voltage overhead lines.
- Flashover & Arcing Prevention : Effectively stops leakage currents, preventing the formation of arcs that can damage the OCW and pantograph assembly.
- Superior Puncture Resistance : A tough, resilient film that resists physical wear and tear from high-speed operation.
- UV & Outdoor Exposure Stability : Specifically formulated to withstand constant sunlight and extreme weather on the roofs of trains.
- Corrosion & Chemical Shield : Protects metal components from the corrosive effects of pollutants and saline atmospheres.
Our pantograph insulation coatings provide essential protection across the entire assembly:
- Structural Components : Pantograph frames, arms, and linkage assemblies.
- Air & Cable Systems : Air pipes, linkages near the OCW, and high-voltage cable terminations.
- Interface Zones : Mounting bases and insulator interface zones where tracking is a risk.
- Jumpers & Connections : Protection for flexible jumpers on the pantograph base.
Frequently Asked Questions (FAQ)
A pantograph operates in close proximity to live overhead wires. A dielectric coating like INSULECT SK-03 prevents electricity from leaping (arcing) to the frame and linkage, ensuring that the current flows only through the intended contact points and protecting the mechanical structure from flashover damage.
Yes. INSULECT SK-03 features excellent outdoor stability and UV resistance. It is designed to remain flexible and adhere strongly to the metal, even under the intense mechanical vibration and wind speeds experienced by metro and express trains.
Absolutely. By preventing corrosion and arcing damage, the coating extends the service life of the pantograph components. Its "Easy Rectification" feature also allows for quick spot repairs instead of total overhauls.
"Leading Railway Insulation Manufacturer & Exporter"
SK Formulations India Pvt. Ltd. provides advanced "Grafted Co-polymer" solutions for the global railway industry. Our pantograph coatings are trusted by Metro operators and Railway authorities to ensure safe, uninterrupted power collection.
