Electrical infrastructure is constantly at risk from leakage currents, contamination flashovers, and insulation failure. SK Formulations presents INSULECT SK-03 , a high-performance composite electrical insulation coating engineered to provide superior dielectric strength for mission-critical power assets.
Specifically designed for both indoor and outdoor high-voltage applications, this dielectric coating creates a robust film that prevents tracking and leakage currents, significantly enhancing the safety and reliability of your electrical distribution system.
Why INSULECT SK-03 is the Standard for Electrical Safety
Unlike traditional insulation methods, INSULECT SK-03 offers a seamless, sprayable, or brushable barrier that conforms to complex geometries, ensuring no part of your conductor is left unprotected.
- Industry-Leading Dielectric Strength : Delivers an incredible $122\text{ kV/mm}$ of electrical insulation.
- Single-Pack, Ready-to-Use : Simplifies the application process-no complex mixing or specialized equipment required.
- Rapid Ambient Curing : Touch-dry in just 30 minutes , allowing for faster re-energization of equipment.
- Self-Priming Technology : Bonds directly to conductors, busbars, and poles without the need for a primer.
- Safety Color Coding : Available in all desired shades (including Red, Yellow, Blue, and Black) for phase identification.
- Flashover Prevention : Effectively averts leakage currents to reduce contamination flashovers in high-voltage environments.
- Excellent Puncture Resistance : High physical toughness ensures the insulation remains intact even under mechanical stress.
- UV & Outdoor Stability : Engineered for dielectric pole coating applications where constant exposure to sunlight and weathering is expected.
- Transformer Oil Resistance : Maintains its properties even when submerged or splashed with transformer oils.
- Fire Resistance : An added safety property that helps prevent the spread of fire in electrical panels.
- Mechanical Durability : Tough, scratch-resistant finish for long-term industrial use.
Our electric insulation coatings are versatile solutions for power generation, transmission, and distribution:

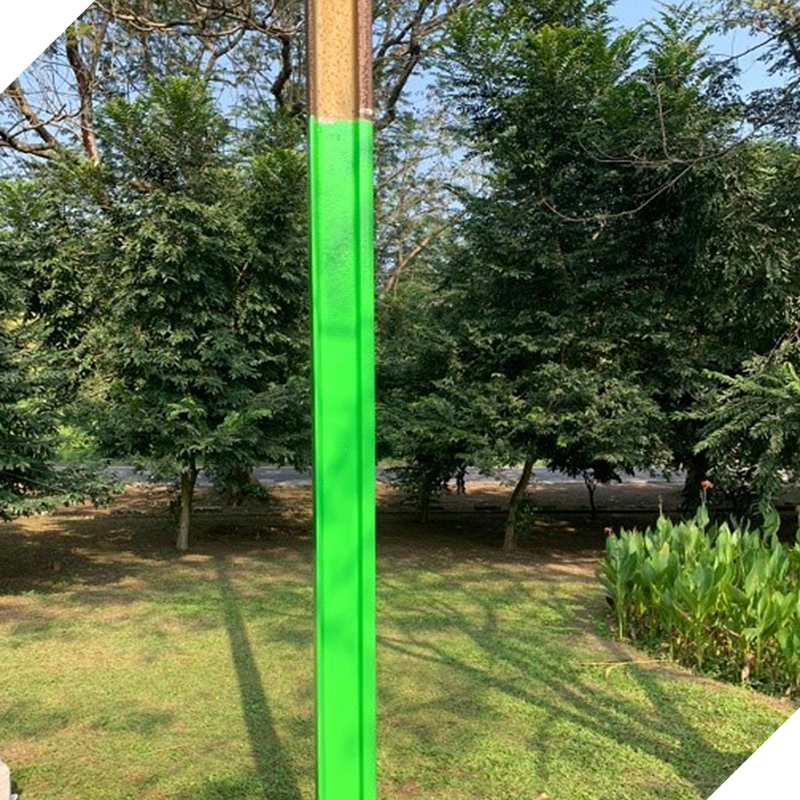

- Power Distribution : Electric poles, cross arms, and ceramic insulators.

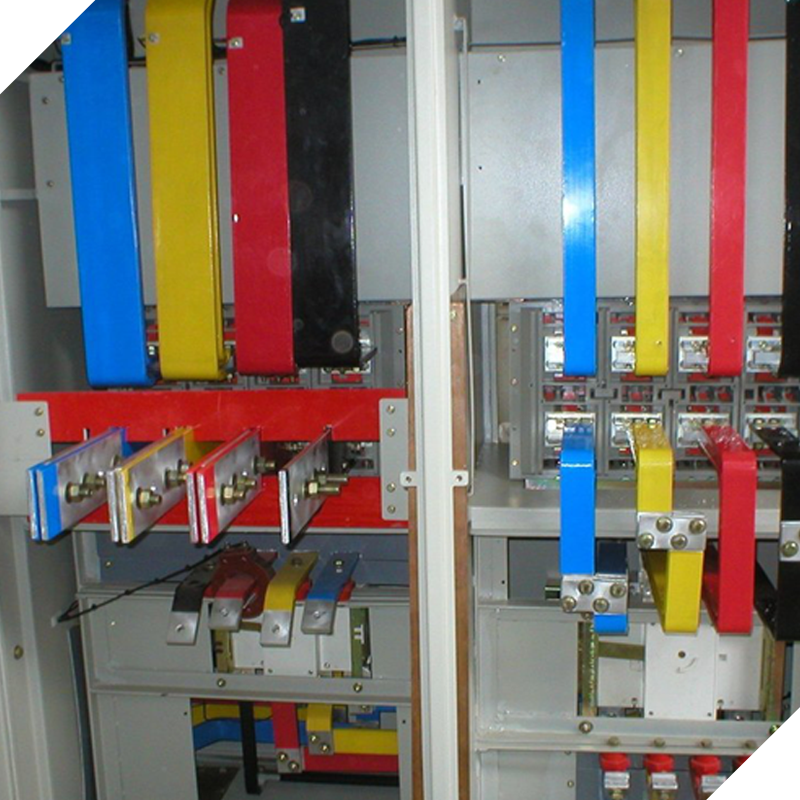

- Control Panels : Busbars, CT (Current Transformers), and PT (Potential Transformers).

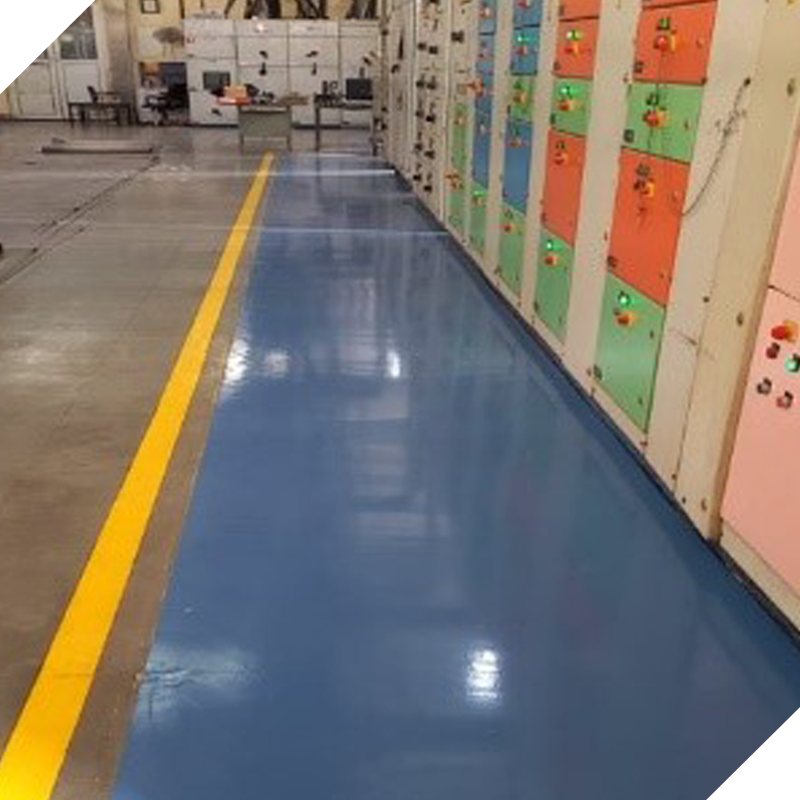

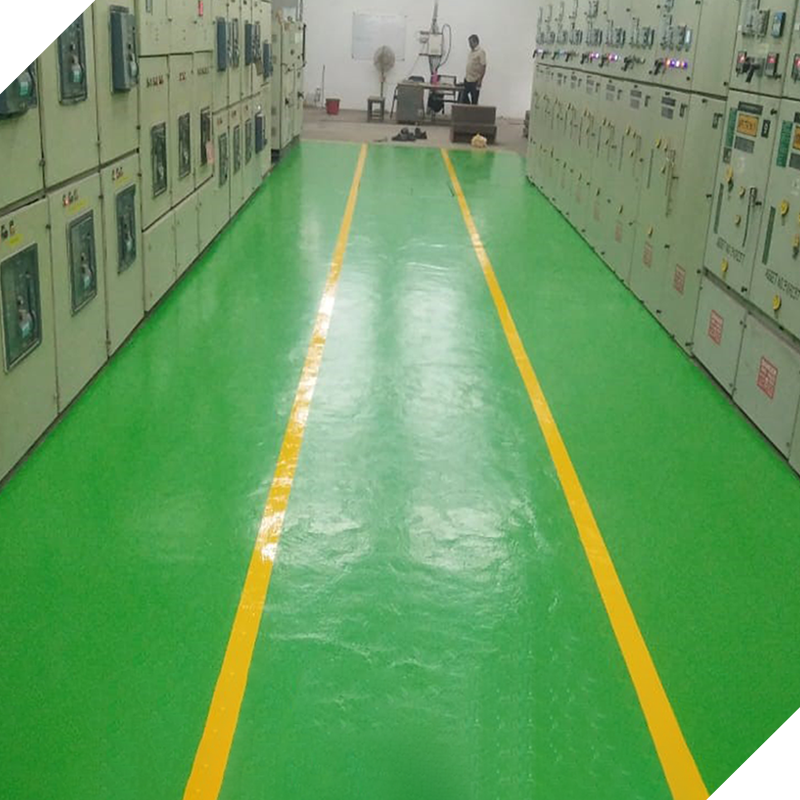

- Workplace Safety : Application on floors in front of control panels as a permanent replacement for rubber mats .

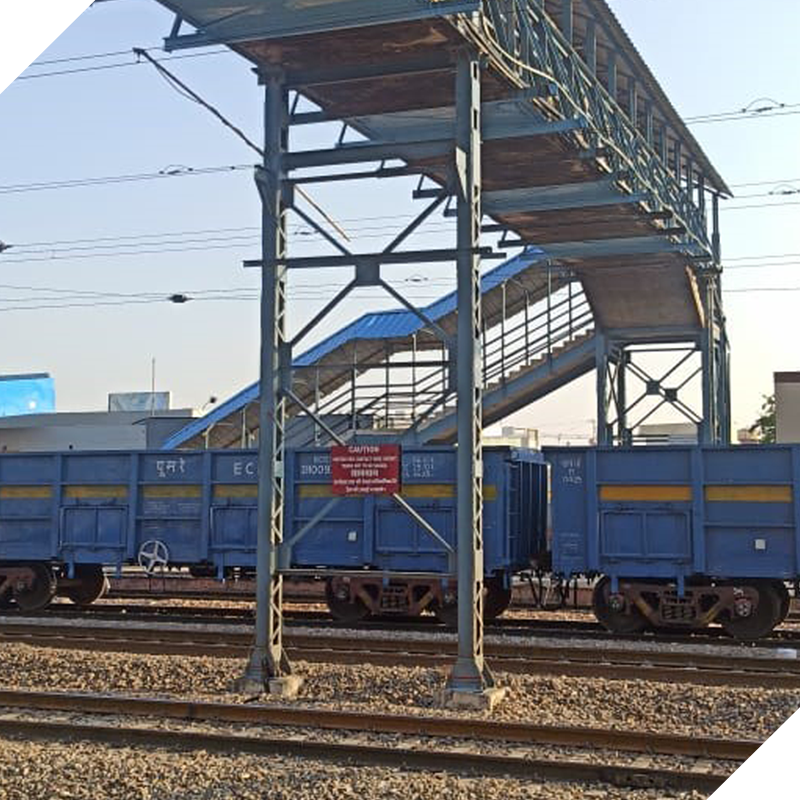

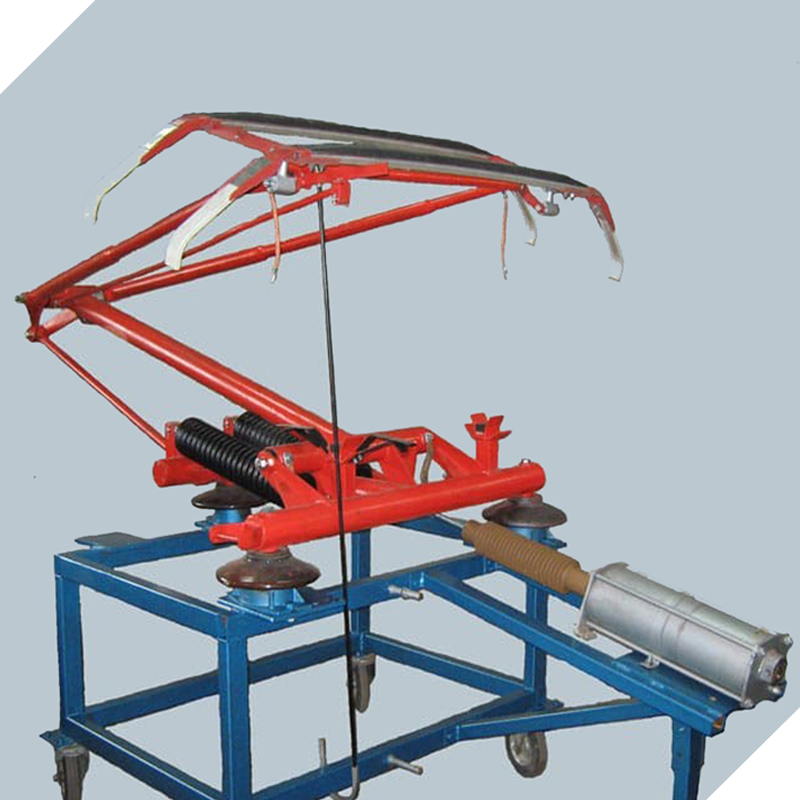

- Railway & Transit : Pantographs and other overhead current-carrying conductors.
- Industrial Equipment : Any current-carrying conductor requiring high-voltage protection.
Frequently Asked Questions (FAQ)
Yes. INSULECT SK-03 is a highly effective dielectric coating that can be applied to the floor area in front of panels to provide electrical insulation, eliminating the trip hazards and maintenance issues associated with loose rubber mats.
The coating provides a certified dielectric strength of $122\text{ kV/mm}$ , making it one of the most powerful liquid insulation solutions available for high-voltage protection.
Absolutely. It is specifically formulated with excellent UV resistance , ensuring it provides long-term protection for outdoor electric poles and cross arms without cracking or losing its insulating properties.
"Leading Manufacturer, Supplier & Exporter"
SK Formulations India Pvt. Ltd. is a specialized manufacturer of dielectric coatings and electrical insulation paints . We provide innovative co-polymer solutions that protect both infrastructure and personnel from electrical hazards.
